Proper wiring of a variable frequency drive (VFD) is essential to ensure stable performance and safety in industrial systems. When connecting a VFD, technicians should always follow manufacturer guidelines and confirm that the power supply, motor, and control wiring correspond to the rated specifications. Using high-quality components and ensuring correct grounding can help prevent electrical interference and prolong equipment lifespan.
Key Steps in Wiring a Closed Loop Inverter
A closed loop inverter setup requires additional connections beyond standard open-loop systems. In this configuration, a feedback device such as an encoder provides real-time speed and position data to the drive. The inverter adjusts output frequency and voltage based on this feedback to maintain precise control. For accurate performance, wiring of the encoder signal lines and shielded cables should be done carefully to minimize noise. Proper isolation between power and control wiring is also critical for reliable operation in industrial environments.
Safety and Performance Considerations
Before energizing the system, it is important to check that all terminal connections are secure, properly labeled, and correctly wired according to the schematic. Ensure that grounding is in place and that the installation meets local electrical codes and safety standards. Many modern drives, such as those equipped with Safe Torque Off (STO) functions, allow immediate torque shutdown in hazardous situations. These safety measures protect operators and reduce equipment downtime. Engineers should also verify the compatibility of the drive with the motor and load type, ensuring that the closed loop inverter operates within the specified range.
Conclusion

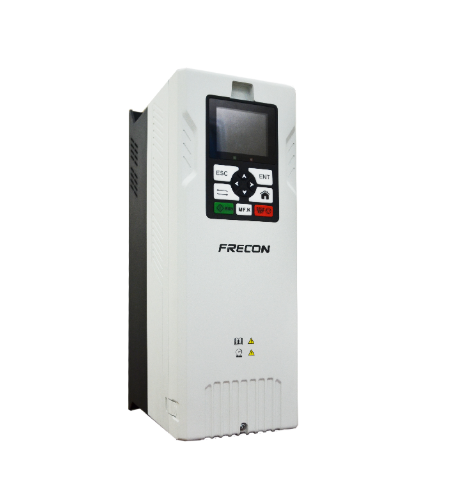

In summary, proper wiring and setup are crucial for the reliable and safe operation of a closed loop inverter. Following manufacturer guidelines, securing all connections, and ensuring correct grounding help prevent electrical issues and maintain system stability. Modern drives, including the best variable frequency drive solutions from FRECON, integrate advanced features such as encoder feedback and Safe Torque Off (STO) protection, enabling precise motor control and enhanced safety. By carefully implementing these practices, industrial operators can maximize the performance, efficiency, and lifespan of their equipment while leveraging FRECON’s high-quality VFD technology.
